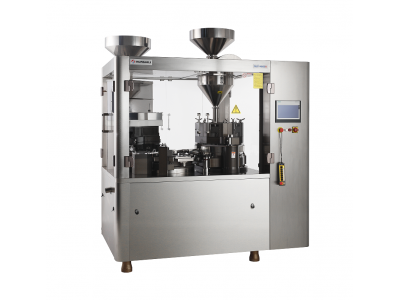

Features：
A new generation of intelligent capsule filling machine: The filling precision is increased by 2 times; Time and effort for dismounting mould is saved by 3 times. Anti-locking, Anti-powder leakage.

1. The patented capsule ejection system effectively protects the filled capsules from breaking by the machine.

2. The split-type design of the capsule feeding system and the patented fully-enclosed structure prevent the capsules from improperly falling into the capsule transmission room and ensure the capsules to perform smoothly.

3. The patented powder filling system includes several patented techniques like the irregular multi-surface powder keeper, the lateral angled feeder, etc., which makes the powder evenly distribute within the powder storage room, correctly and smoothly flow into the capsules, and achieve an extremely precise capsule filling process.

4. The patented modular punch as well as the bi-nodal feed hopper is of simple dismounting and with accurate positioning.

5.The patented integrated rotary table with ultra-precision has features like small size, light load,, long service life, three years free of oil and maintenance and so on.

6.The whole set of the moulds and all the parts that need daily cleaning and maintenance are equipped with locating pins, and the connection as well as fastening among different parts is extremely simple. As the fastening tool is standardized in size, a small spanner can easily dismount all the parts.

7. The host is intelligent remote controlled, by using the remote the remote control to jog and test-run the machine after cleaning and maintaining the moulds or equipment, the operation become easy and safe.

8. All the connectors of the air pipes apply standardized clamps, which are much easier to dismantle and clean than others.

Main Technical Data:

Allocation list

1. Transmission parts：

 2、电器元件
